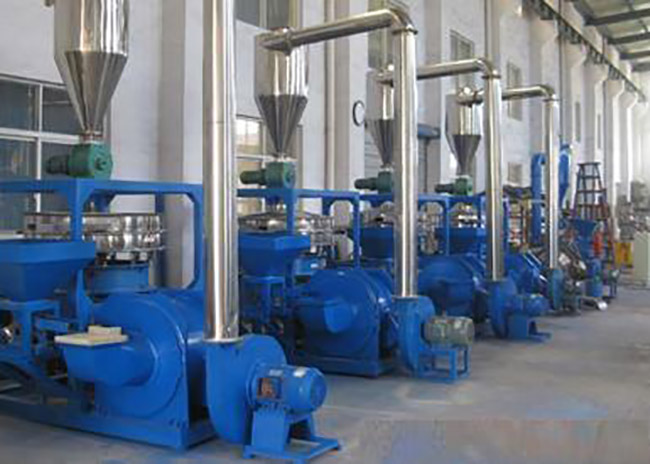

PVC mill, PE mill
Scope of application: 1. Mainly used in the field of hard PVC recycling, such as defective goods and leftover bits and pieces of PVC pipes, section bars and plates, PVC packaging and leftover bits and pieces of aluminum plastic tablets, and milling of ABS, PS, PA, PC and other plastics. 2. The minimum and maximum diameters of the millstone of the PE mill are 350mm and 800mm respectively, and the PE mill belongs to the series of millstone-type mills. It is widely used in impact-resistant and fragile materials with moderate hardness, such as PE, PVC, PP, ABS, PA, EVA, PET, PS, PPS, EPS, PC, foam and cow leather. Structural feature: 1. The new cutter structure, strong collision between materials and shear crushing of the stationary blade plate in terms of the high-speed centrifugal force of the rotating blade. 2. The use of air-cooled and water-cooled combination has effectively controlled the temperature for crushing materials and solved the problem of degeneration, melting and charring of heat-sensitive plastics after grinding and other problems. 3. The grinding chamber of the machine can be opened, so that the cutter can be easily repaired and replaced. 4. It is equipped with the vibration screening equipment, so that materials whose powder particles cannot meet the requirements shall be returned to the mill for re-milling. 5. It is equipped with negative pressure feeding and dust removal devices, while improving the discharge speed of materials, avoid the occurrence of worn fan impellers due to the previous positive pressure discharge in the past, and dust in the process of milling has also been effectively recovered. 6. The electrical control part uses the domestic well-known brand, and the host part uses the star-delta starting mode, reducing the start-up current and increasing the service life of the motor.| Model | Blade Diameter | QTY of rotated blade | QTY of stationary blade | Power (kw) |
Output (kg/h) | Overall dimension (mm) | Weight (kg) |
| SY-500 | Ф483±1 | 24 | 12 | 44/59 | 120-300 | 3000*2800*3900 | 1680 |
| SY-600 | Ф583±1 | 28 | 14 | 54/72 | 180-480 | 3200*3000*4200 | 2280 |
| SY-800 | Ф783±1 | 36 | 16 | 88/118 | 350-880 | 3500*3200*4500 | 2880 |
