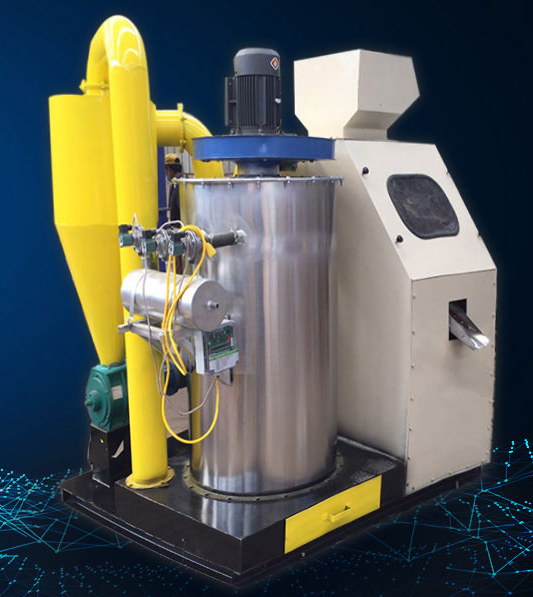

Scope of application： Crushing and separating copper and plastic of various of waste  wires/cable; Separating the Copper，Iron and aluminum from the crushed Cu-Al radiator. Structural feature: Integrated  structure,small occupied area, easy to use and move. It can works as soon as the power on on the flat ground. It adopts PLC control cabinet,easy to operate. As an important part of copper and plastic separating, the gravity separator adopts the Italian air flow suspension separating process, and the vibration frequency and material floating air supply strength can be precisely adjusted according to different materials. The crushing system adopts SKD-11 alloy cutting tool, the processing hardness can reach HR58. It can ensure the crushing blade a high-wearing resistance as well as a certain tenacity during works. Designed as splayed alternate shearing structure, makes the crushing more easily. The equipment used for crushing the electric wire adopts the water cooling system to avoid the heat and melting of the material during long working hours. The complete plant is fully enclosed,and equipped with the advanced pulse dust collector, can prevent environmental pollution effectively . The copper recovery rate of this equipment reaches 99%, if you want to further sorting, our electrostatic separator can be further sorted. Specification：

Model	Power of Crusher (KW)	Power of Air conveying (KW)	Power of Air separating (KW)	Power of Dust Collector (KW)	Capacity (KG/H)	Weight (KG)	Overall Dimension (mm)
CG400	15	/	0.75+2.2	0.75	100-150	1800	2000*1850*2600
CG600	37	3	3.75	2.2	300-400	3500	4200*1900*3800
