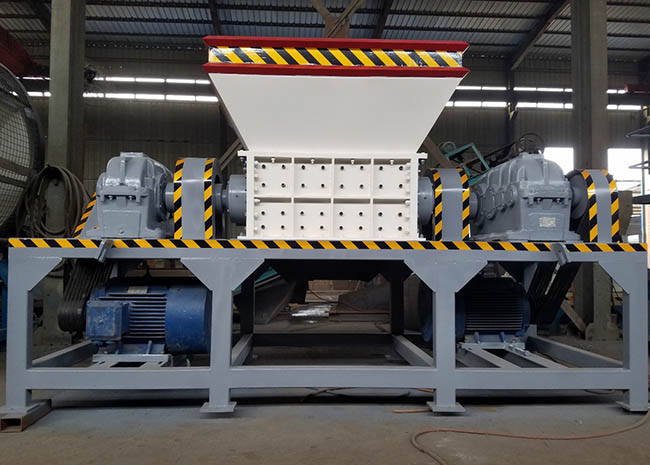

Double shaft shredder and four-shaft shredder: Scope of application: It is mainly used in the crushing of waste rubber tires, scrapped cars, chemical plastic barrels, waste household appliances, circuit board, mixed light industrial waste material, light construction material, medical waste, container pallets, scrap wire and cables and large animal bones. Structural feature: 1.It has low revolution speed, large torque, low noise, large processing amount and evenly discharging particles. After the special design of shredding mechanism, the capture, tearing and cutting of materials are optimized. PLC control cabinet makes the operation more easily, and the cutting angle of the material can be automatically reversed and adjusted during overload to make the operation more intelligent and simple.

Model	Power (kw)	Size of crushing chamber (mm)	Diameter of blade (mm)	Thickness of blade (mm)	Quantity of blades (piece)	Overall dimension (LxWxH) (mm)	Weight (kg)
DS-500	11×2	500×480	200	20	24	2800×1300×1850	2200
DS-800	22×2	800×480	200	20	40	3000×1300×1850	2500
DS-1000	30×2	1000×690	300	40	24	3300×1900×2200	5200
DS-1200	37×2	1200×690	300	40	30	3600×2000×2200	6400
DS-1500	45×2	1500×850	550	50/75	30/20	4180×2100×2400	9000
DS-1800	55×2	1800×1206	550	50/75	36/24	5800×2400×3300	13600
DS-2000	90×2	2000×1490	600	50/75	40/26	6400×2700×3500	20100
DS-2500	110×2	2500×1800	600	75/100	32/24	7500×3200×3800	25000
DS-3000	132×2	3000×1800	600	75/100	40/30	8600×3500×4000	31000
Remarks: 1. The claw quantity, diameter and thickness of the blade can be customized according to the type of material and the discharge size. 2. The output will different according to the different material and discharge size .
